Lithium Ore Grinding Ball Mill Mineral Grinding Equipment

1.Product Introduction

Lithium Ore Grinding Ball Mill is a specialized industrial equipment designed for pulverizing lithium ores. By utilizing the impact and attrition between steel balls and ore within a rotating drum, it grinds lithium-bearing minerals, such as spodumene, to the optimal particle size. This process facilitates the high-efficiency execution of subsequent mineral dressing and lithium extraction operations.

2.Application

In lithium ores, lithium is primarily present as spodumene, often with a fine disseminated grain size that requires thorough liberation for effective recovery. The ball mill plays a decisive role in this process:

• Maximizing Mineral Liberation: Grinding the ore to the target fineness (e.g., 80% passing 0.074mm / 200 mesh) to ensure complete separation of lithium minerals from the gangue.

• Enhancing Flotation Efficiency: Fine grinding increases the surface activity of the minerals, allowing for better adsorption of collectors and significantly boosting flotation recovery rates.

• Optimizing Energy Consumption: Precise control of grinding fineness prevents over-grinding, thereby reducing energy waste and equipment wear.

In actual production lines, the ball mill is typically integrated with crushers, classifiers, and flotation cells to form a complete mineral processing system, following the mainstream process route: "Three-stage Crushing + Closed-circuit Grinding + Flotation Extraction."

3.Working Principle

Lithium ore ball mills typically utilize a wet grinding method. During operation, the motor drives the drum to rotate via a reduction gear system. Inside the drum, steel balls and ore are lifted to a specific height by the combined action of centrifugal force and friction before falling freely to impact the material. Simultaneously, the sliding and rolling motions between the balls create a grinding effect, progressively pulverizing the ore into fine powder.

The ground material is discharged from the outlet as pulp/slurry and enters a spiral classifier or hydrocyclone for classification:

• Qualified fine pulp proceeds to the flotation or chemical lithium extraction process.

• Coarse particles are returned to the ball mill via a combined feeder for re-grinding, forming a closed-circuit circulation system.

This equipment is designed for 24/7 continuous operation, making it ideal for large-scale lithium ore processing lines.

4.Advantages

• Max Feed Size: Generally less than 25mm.

• Discharge Fineness: Adjustable from 20 to 200 mesh (approx. 0.85–0.074mm), meeting various mineral processing requirements.

• Processing Capacity: 0.65–90 TPH (tons per hour), customizable based on production line scale.

• Grinding Media: High-manganese steel balls or wear-resistant alloy balls, paired with high-abrasion liners to extend service life.

• Drive System: Options include V-belt, coupling, or direct drive systems; select models are equipped with VFD (Variable Frequency Drive) for optimized energy consumption

5.Technical Specifications

6.Our Solutions

200 mesh ore ball mill

200 mesh mineral grinding equipment

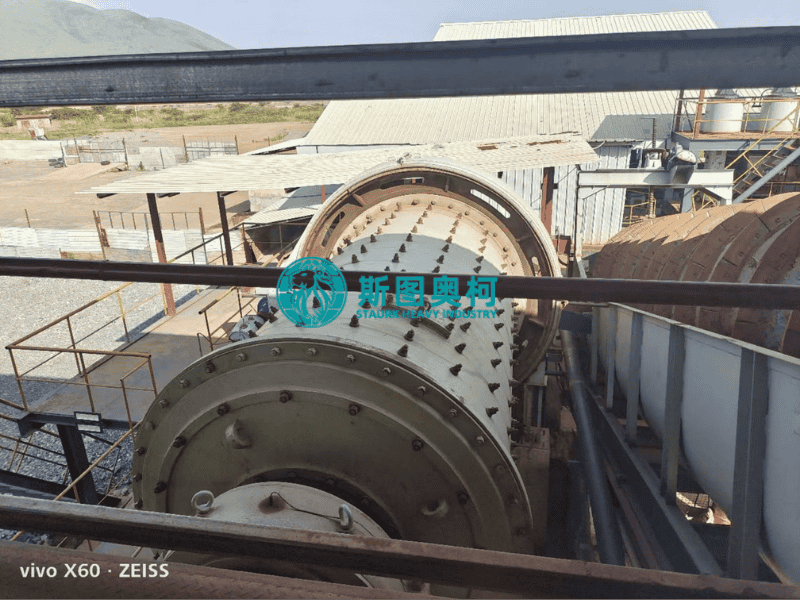

Lithium Ore Grinding Ball Mill Mineral Grinding Equipment Images
